Green 10m Self Propelled Electric Scissor Lift Aerial Work Platform With Hydraulic Motor Driving

Name: Green 10m Self Propelled Electric Scissor Lift Aerial Work Platform With Hydraulic Motor Driving
Brand: CHENLIFT
Price: 1 USD

China Green 10m Self Propelled Electric Scissor Lift Aerial Work Platform With Hydraulic Motor Driving factory

Brand Name : CHENLIFT

Model Number : MX1000S

Certification : CE ISO9001:2008 IPAF member

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Supply Ability : 30 sets per month

Delivery Time : 30days after the down payment

Packaging Details : Packed with Pallet, Wrapped with Film

Paint : Powder Coating

Platform height : 10m

Working height : 12m

Loading capacity : 320kg

Platform size : 2.27*1.12m

Lift/Drive Motor : 24V/ 3.3kw

Power source : 4*6V/225Ah

Weight : 2750kg

Contact Now

10m Self-propelled Scissor Lift with Hydrauli Motor Driving

Quick Detail:

Name	Fully Electrical Scissor Lift	Model	MX1000S
Loading Capacity	320Kg	Platform Height	10m
Ground clearance (m)	0.1	Extension Length	0.9m
Maximum Working Numbers	2 person	Extension Loading	113Kg
Moving Power	3.3Kw	Maximum Working Slope	2°/3°

Description:

This machine is used to lift people to the high places to work with hydraulic motor driving. Unlike an articulating lift that offers a degree of horizontal outreach, electric scissor lifts are a flat platform that travels straight up and down.

Main Features:

1. The structure of this machine is made up of high strength rectangular Manganese steel.

2. When you stop pressing the button, it will stop lifting/ descending.

3. The platform surface is anti-skid to ensure the safety of the workers.

4. Good sealing performance oil cylinders

5. Folding fence to let the machine pass height-restrict space

6. No need of outriggers, so that it can work in narrow space

Main Configurations

Hydraulic Motor Driving
Extension Platform
Buzzer & Strobe Light
Fork Lift Slots

Optional Configuration:

Over Load Protection Sensor Alarm
Working Light on the Platform
Airway Tube to the Platform

Applications:

Working Site: Library, Airport, Coach Station, Metro and Supermarket.

Product Tags:

self propelled lift

scissor lift self propelled

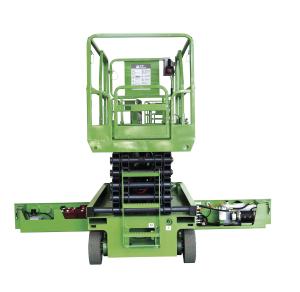

Green 10m Self Propelled Electric Scissor Lift Aerial Work Platform With Hydraulic Motor Driving Images
