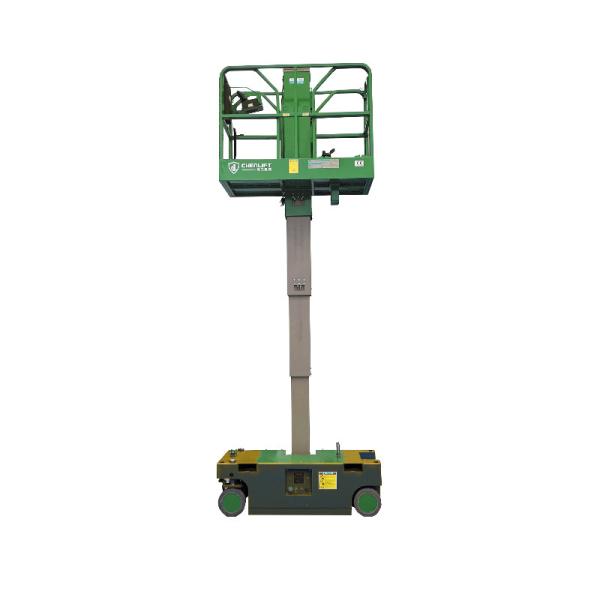

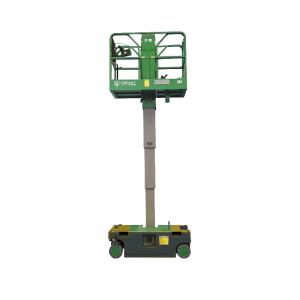

DC24V 100AH Oil Free Full Electric Vertical Lift Self Propelled

Brand Name : CHENLIFT

Model Number : MD400

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T L/C

Supply Ability : 200 sets/month

Delivery Time : 30 days

Packaging Details : Wrapped in pallets

Name : Full Electric Vertical Lift

Model : MD400

Load Capacity : 230kg

Platform Size : 1.5*0.8m

Extension Platform : 0.4+0.4m

Extension Load : 120kg

Stowed Size : 2.3*0.8*1.99m

Power : DC24V 100AH

Charger : 24V 30A

Keyword : Oil Free,Full Electric,Vertical Lift,Self Propelled Vertical Lift

Contact Now

MD400 Model OIL FREE FULL ELECTRIC SELF PROPELLED VERTICAL LIFT

STANDARD CONFIGURATION:
OIL FREE
CAN BUS PROTOCOL
PROPORATIONAL JOYSTICK CONTROL
SELF LOCKING GATES
DRIVABLE AT FULL HEIGHT
NON MARKING TIRES
DUAL WHEEL AUTOMATIC BRAKING
EMERGENCY DESCENT SYSTEM
FAULT DIAGNOSE SYSTEM
TILT ALARM/MOTION ALARM/HORN/HOUR METER
EXTENSION PLATFROM FOR BOTH 2 SIDES
OVERLOADING SENSOR
FORKLIFT SLOT
POTHOLE PROTECTION


SPECIFICATION:

Model MD400
Max. Working Height 6m
Max. Platform Height 4m
Loading Capacity 230Kg
Platform Size 1.5*0.8m
Platform Extension 0.4+0.4m
Platform Load Capacity 120kg
Stowed Size 2.3*0.8*1.99m
Ground Clearance 0.07m
Wheelbase 1.11m
Battery 2*12V/100AH
Up/Down Speed 20S/25S
Travel Speed (Stowed) 0.8Km/h
Travel Speed (Raised) 4Km/h
Turning Radius 0.5m/1.2m
Gradeability 25%
Charger 24V/30A
Tyre 305*100
Maximum Working Slope 1.5/3
Weight 920Kg

DC24V 100AH Oil Free Full Electric Vertical Lift Self Propelled
Applications:

1. Site: Work Shop, Theatre, Hospital, Library, Restaurant, Hotel Exhibition Hall etc.
2. Vertical Lift Purpose: machine maintenance, painting, cleaning etc.


Why to choose CHENLIFT ?

· High Quality

· Reasonable Price

· Good after Service

· 1 Year Warranty

· More Than 10 Years Experience
